Feature

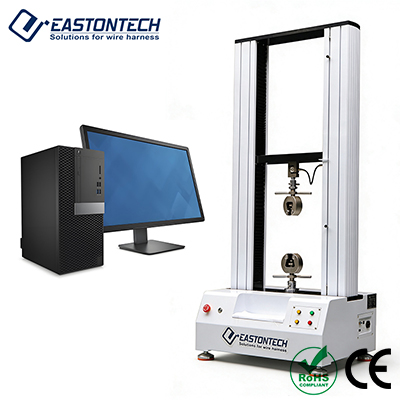

● High-Rigidity 10 kN (1 Ton) Double Column Frame: Heavy-duty dual-column structure ensures zero frame deflection during maximum load tensile, compression, peel, and elongation tests.
● Windows-Based Software & Real-Time Analytics: Driven by advanced computer measurement software, displaying real-time force, displacement, speed, and stress-strain curves with dialog-box parameter setup.
● Precision Ball Screw & Quiet Motor Drive: Features high-efficiency ball screw transmission and a low-noise drive motor for smooth, constant-speed testing without mechanical backlash.
● Ultra-Wide Speed Range (0.01–500.00 mm/min): Fully adjustable pulling speed with ±1% speed accuracy and 0.001 mm displacement resolution to accommodate various material test standards.
● Multi-Functional Testing Capabilities: Capable of performing terminal pull-off force, tensile strength, peel strength (90°/180°), compression, and elongation tests on a single machine.
Application Range
● Wire Harness Terminal Crimp Pull Testing: Accurately measure the retention force and pull-off strength of crimped terminals under UL 486A/B and IEC standards.
● Automotive & Aerospace Cable Quality Control: Validate tensile strength and jacket/conductor breaking points on heavy-duty power cables and battery leads.
● Electrical Components & Connectors: Test insert/withdrawal force, soldered joint strength, and contact post retention.
● Rubber, Plastics, Adhesives & Materials Testing: Perform 90°/180° peel strength, compression resistance, and tensile elongation tests across varied industrial materials.
