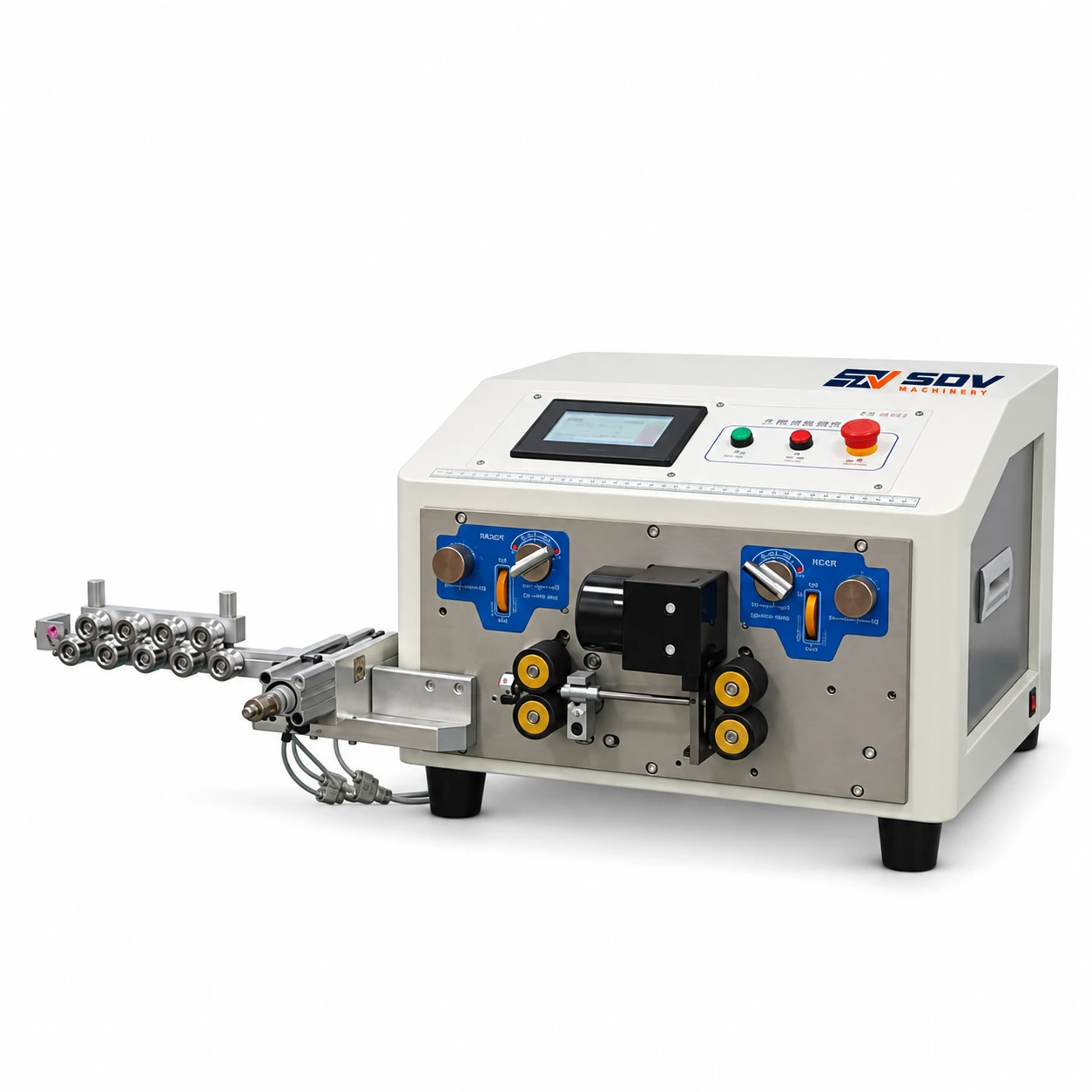

Feature
● High-Throughput 4,500 Pcs/Hour Output: Rapidly cuts and strips wires from 0.1 to 99,999.9 mm in length, significantly slashing unit production cycle times.
● 16-Stage Intermediate Mid-Stripping: Programmable multi-window stripping allows up to 16 mid-strip positions per wire, perfect for multi-tap, inline splice, and soldered joint wiring.
● 0.01 mm Stepper Motor Precision: Driven by ultra-quiet hybrid stepper motors and wear-resistant tungsten steel / HSS blades to ensure nick-free insulation removal.
● 4.3-Inch Color Screen with 99-Program Storage: Intuitive graphic user interface enables quick "one-touch" parameter recall and rapid job changeovers without specialized programming skills.
● Heavy-Duty Benchtop Construction (31.5 kg / 680W): Built with a rigid metal frame and 680W total unit power for continuous, long-term industrial shift production.
Application Range
● Automotive & Vehicle Wire Harnesses: Rapid processing of single-conductor leads requiring multi-point inline splices, tapping, or terminal crimping.
● Industrial Control Panels & Appliances: Precise cut, end-strip, and intermediate window-strip processing for internal panel cables (AWG 30–10).
● Electronics & Medical Devices: Micro-precision, strand-safe stripping of fine signal wires down to 0.1 mm² using high-hardness tungsten steel blades.
● Custom Harness Assembly & Multi-Tap Leads: Fast execution of complex wire geometries with up to 16 mid-strip sections in a single automated cycle.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
