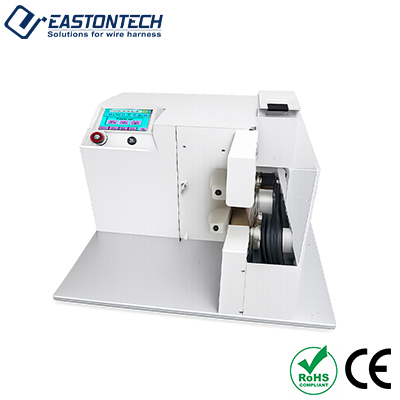

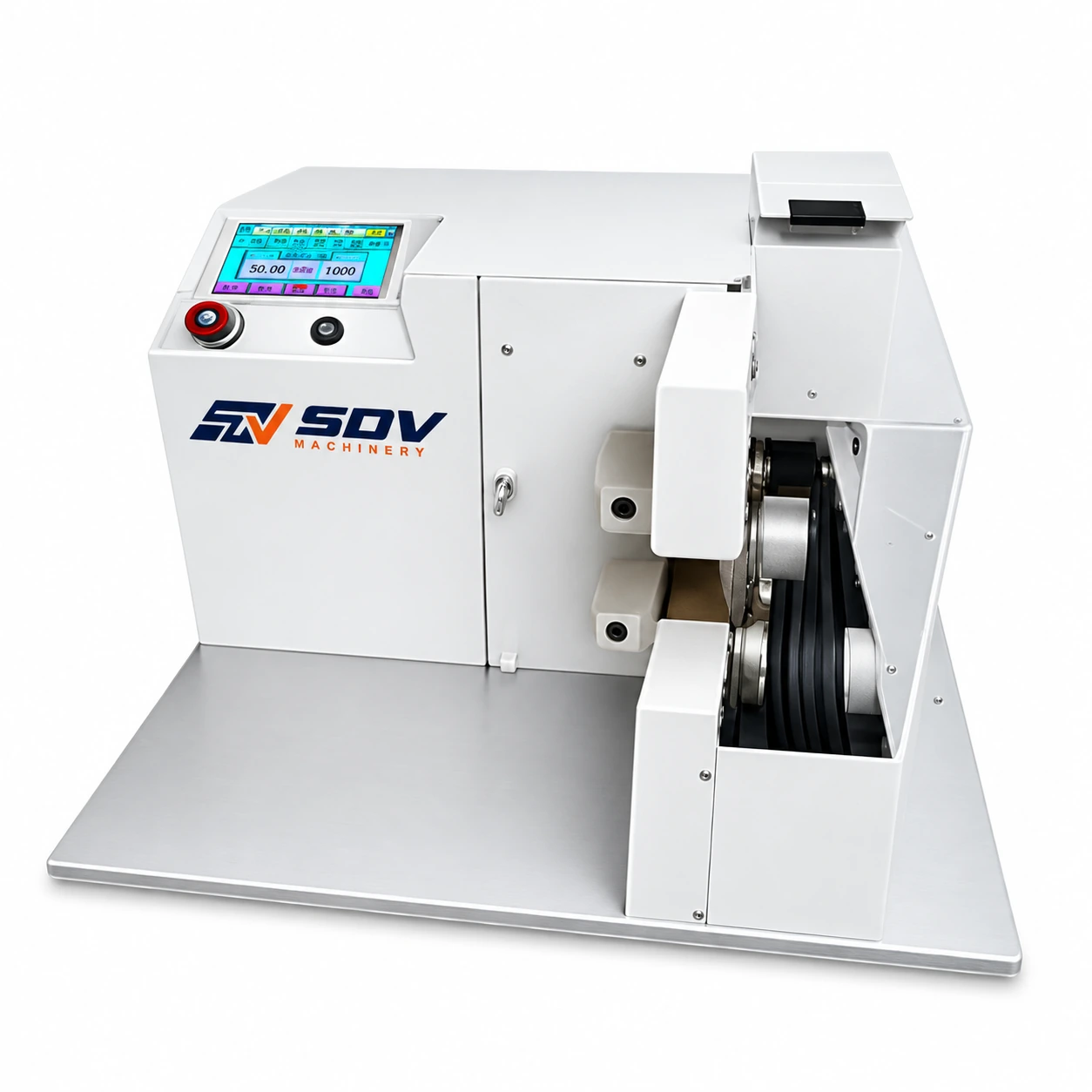

Feature
● Integrated Release Paper Receiver: Automatically strips and rewinds paper backing/liners from flannel, acetate, or double-sided tapes during wrapping, maintaining a clean workspace.
● 3-in-1 Wrapping Modes (Full, Spot & Multi-Section): Touch-screen interface allows operators to switch effortlessly between continuous full-length wrapping, localized spot taping, and multi-point section bundling.
● 3 to 40 mm OD Versatility & Unlimited Length: Wraps cable harness bundles from 3 mm up to 40 mm outer diameter with unlimited processing length at high rotational speeds.
● Doubled Wrapping Productivity: Delivers more than double the output speed of manual taping with consistent wrapping pitch, tight adhesion, and zero manual tape tension variation.
● Custom Tape Fixtures & Safety Enclosure: Accommodates tape widths from 5 to 25 mm with customizable core fixtures, protected by an integrated safety guard for operator security.
Application Range
● Automotive Wire Harness Assembly: Fast noise-dampening flannel and cloth tape wrapping for engine, door, instrument panel, and chassis wiring trees.
● Tapes with Release Paper Liners: Specialized taping applications using double-sided adhesive tapes or lined cloth tapes where paper backing must be removed during wrapping.
● Home Appliance & HVAC Wiring Looms: Uniform spot-bundling and full insulation wrapping for power cable harnesses, sensor leads, and control board looms.
● Industrial & Energy Equipment: Neat multi-section taping for complex branch cables up to 40 mm in bundle diameter.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
