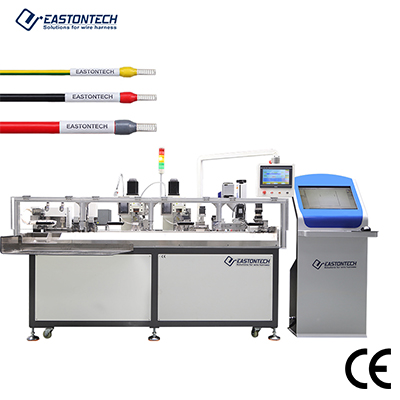

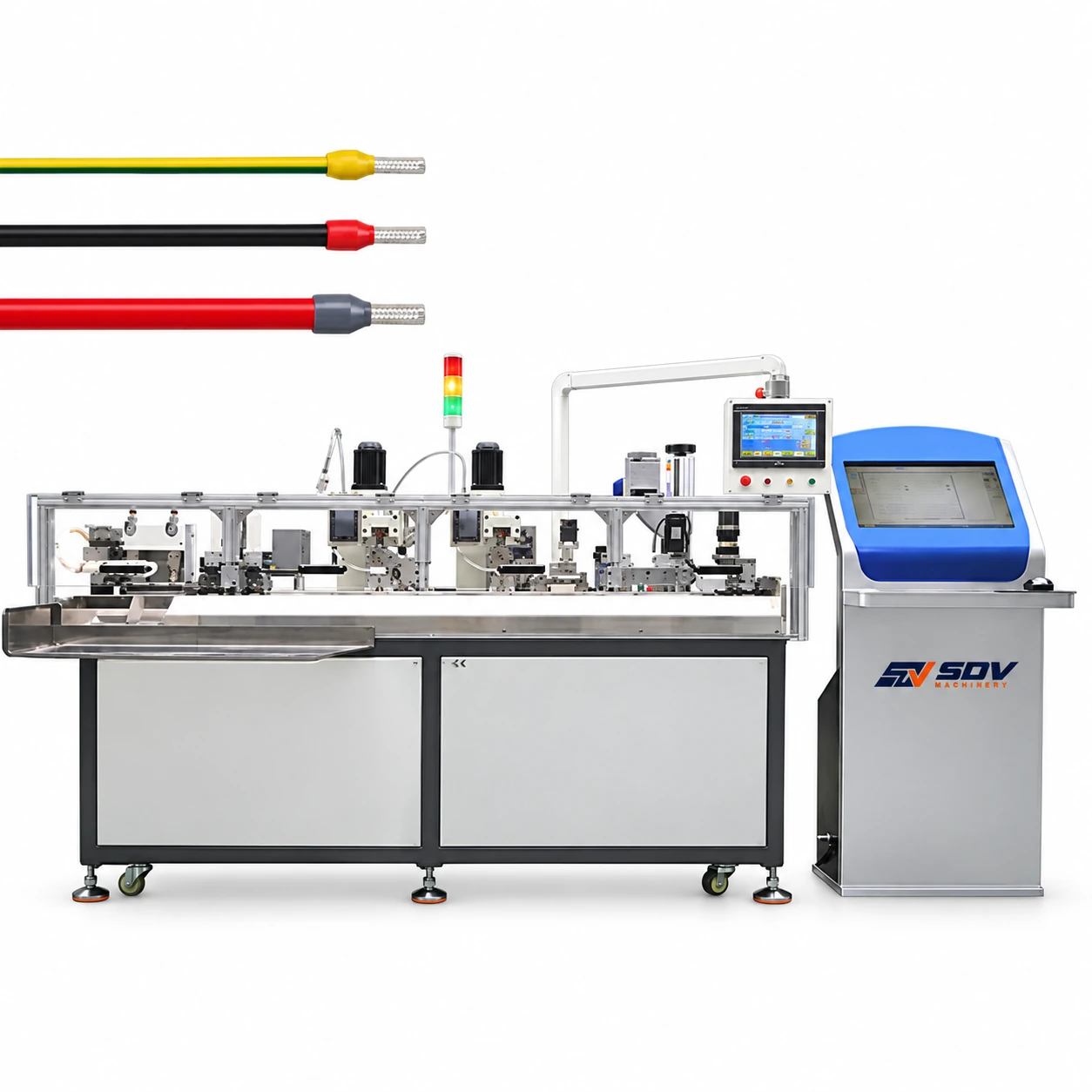

Feature
● High-Efficiency U-Type Layout: Compact U-shaped transfer structure optimizes floor space and achieves ultra-fast production speeds up to 2,000 pcs/hour on long wire runs.
● Double-Pass Heat Shrink Tube Processing: Automatically feeds, cuts, and sleeves marker/shrink tubes (9–25 mm length, Φ2.5–Φ6.0 mm diameter) onto both wire ends before crimping.
● Heavy-Duty 3.0-Ton Servo Crimping Force: Delivers powerful, consistent double-head terminal crimping suitable for industrial power and signal terminals.
● Intelligent Quality Inspection System: Built-in knot detection, crimp height/force sensors, and missing-wire detectors instantly halt production upon anomaly detection.
● Premium Brand Component Architecture: Equipped with Mitsubishi servo motors, HIWIN linear guides, and TBI precision ball screws for high repeatability and long operational lifespan.
Application Range
Automotive Wire Harness Assembly: Dual-ended crimping with heat shrink marker sleeve insertion for automotive sensors, engine control cables, and chassis harnesses.
Home Appliance Wiring Trees: High-speed double-ended terminal crimping and insulating tube placement for washing machines, air conditioners, and refrigerators.
Industrial & Telecom Cabinets: Precision identification marker tubing and terminal termination for power distribution wires and control cabinet lines.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
