Feature

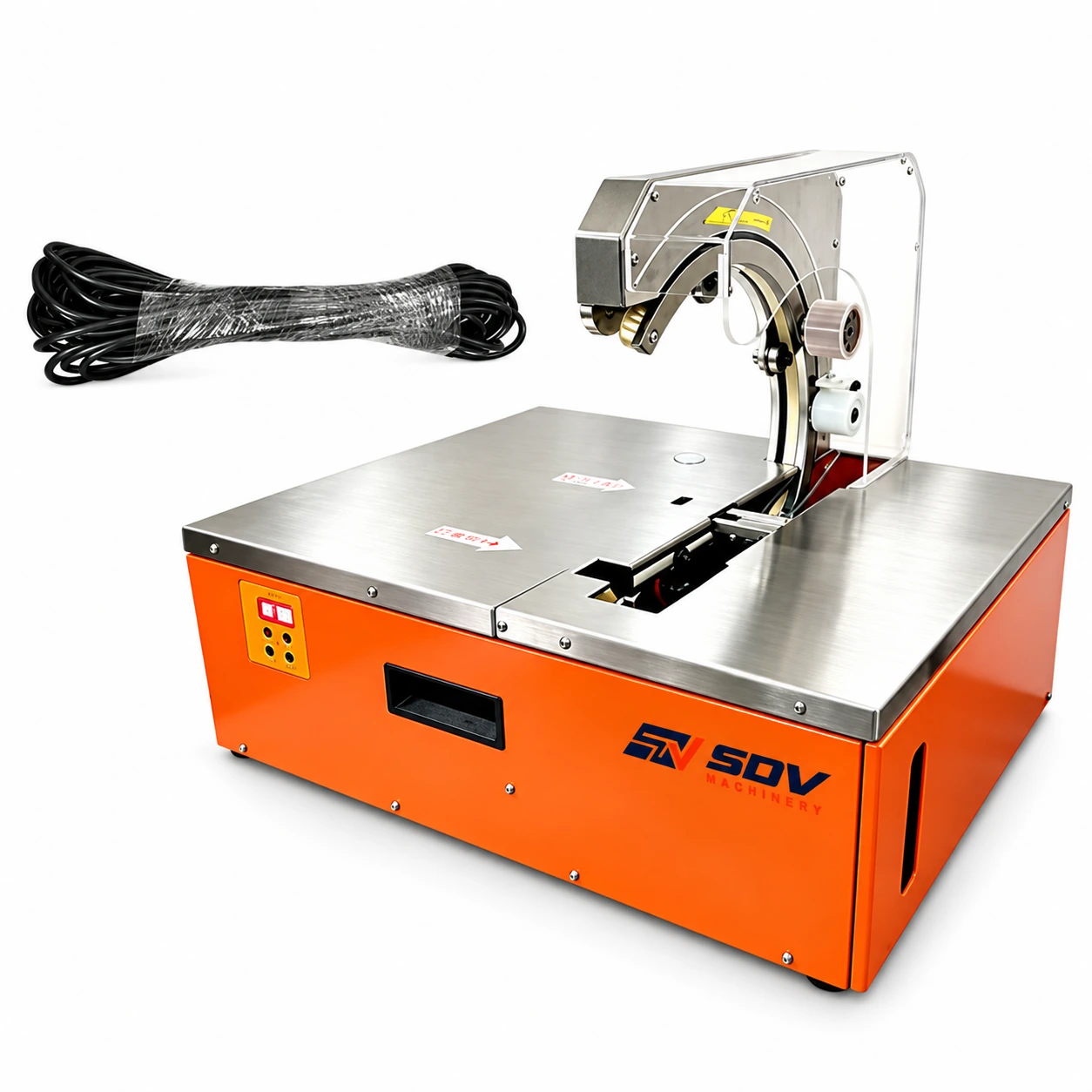

● Automatic Wire Harness Bundling System:Wraps and secures cable bundles automatically, reducing manual wrapping time and improving line throughput.
● Dual Operation Modes for Flexible Production:Switch between automatic induction sensing and button-controlled strapping to match different harness batch sizes and operator preferences.
● Fast, Reliable Bundling Performance:Delivers tight, uniform wraps at up to 30 cycles per minute with consistent results across production runs.
● Low Cost, Easy Maintenance:Runs on economical PE stretch film rather than specialty tape, keeping consumable costs low with straightforward upkeep.
Application Range
● Automotive Wire Harness Manufacturing: Fast spot-bundling and branch binding of engine, body, and sensor cable trunks.
● Electronics & Home Appliances: Neat grouping of jumper wires, power cords, and internal control harnesses without glue residue.
● Telecommunications & Data Cabling: Clean binding of LAN cables, patch cords, and fiber optic assemblies.
● Industrial Hoses & Pipes: Secure bundling of flexible plastic tubing, corrugated conduits, and extruded profiles up to 145 mm OD.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
