Feature

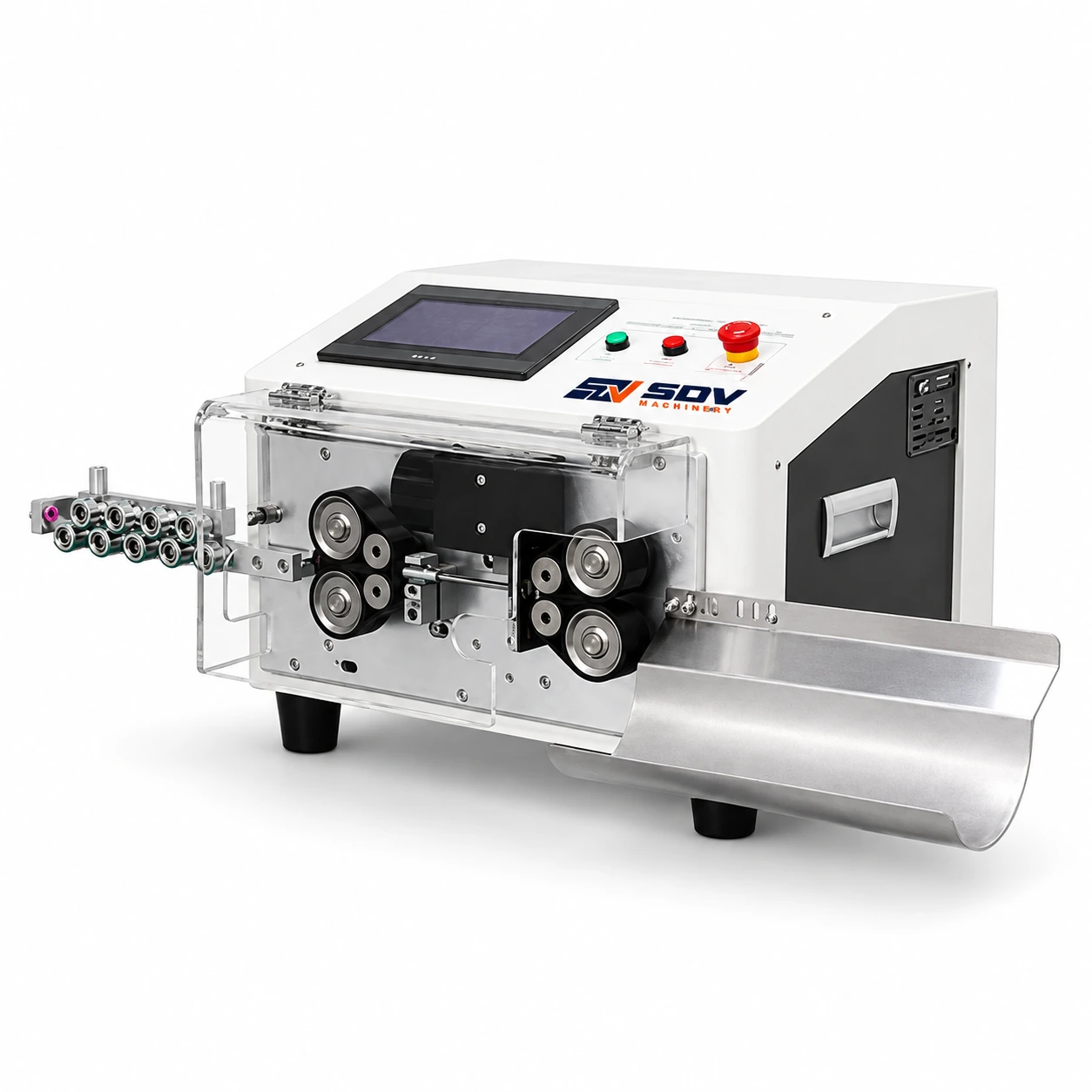

● High Output Speed (Up to 4,500 pcs/h): High-torque 4-roller electric drive processes 100 mm wire lengths at rates up to 4,500 pcs/h with tight length tolerances (< 0.002 × L).
● 32-Bit Cortex-M33 Core Processor: Advanced processor architecture with 2000 kHz impulse input ensures ultra-fast parameter processing, smooth acceleration, and precise feed depth control.
● Innovative Tube Jump Mechanism: Mechanical tube jump action moves guide tubes out of the blade path during stripping, preventing insulation binding and enabling long stripping up to 70 mm per side.
● 500 Program Storage & Multi-Mode Switching: Intuitive 7-inch color touchscreen allows one-key switching between standard cut/strip, long wire, ultra-short wire, sheath cable, and central window stripping modes.
● Customizable 4-Roller Drive (Rubber or Iron): Choose non-marking rubber rollers for soft PVC/silicone insulation, or heavy-duty knurled iron wheels for dense BVR copper wire feeding.
● Titanium-Plated Stainless Steel Blades: Ultra-hard titanium coating extends blade sharp life and ensures crisp, fray-free cutting on tough glass fiber and multi-strand copper conductors.
Application Range
● Automotive Control Harnesses: High-speed cutting and stripping for BVR electronic wires and multi-strand copper leads.
● Home Appliance Wiring Assemblies: Precise cut and double-end strip processing for internal control board cabling.
● Industrial Panel & Glass Fiber Cabling: High-temperature glass fiber wire processing without blade wear or insulation tearing.
● High-Mix Contract Harness Manufacturing: Rapid batch switching utilizing 500 saved recipes for varied wire length runs.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
