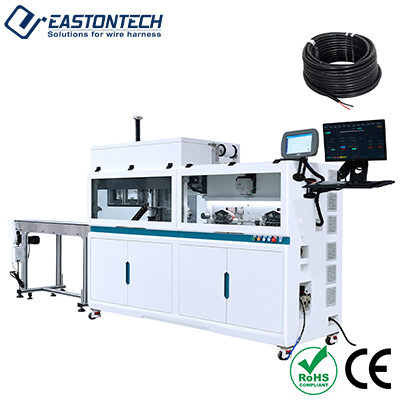

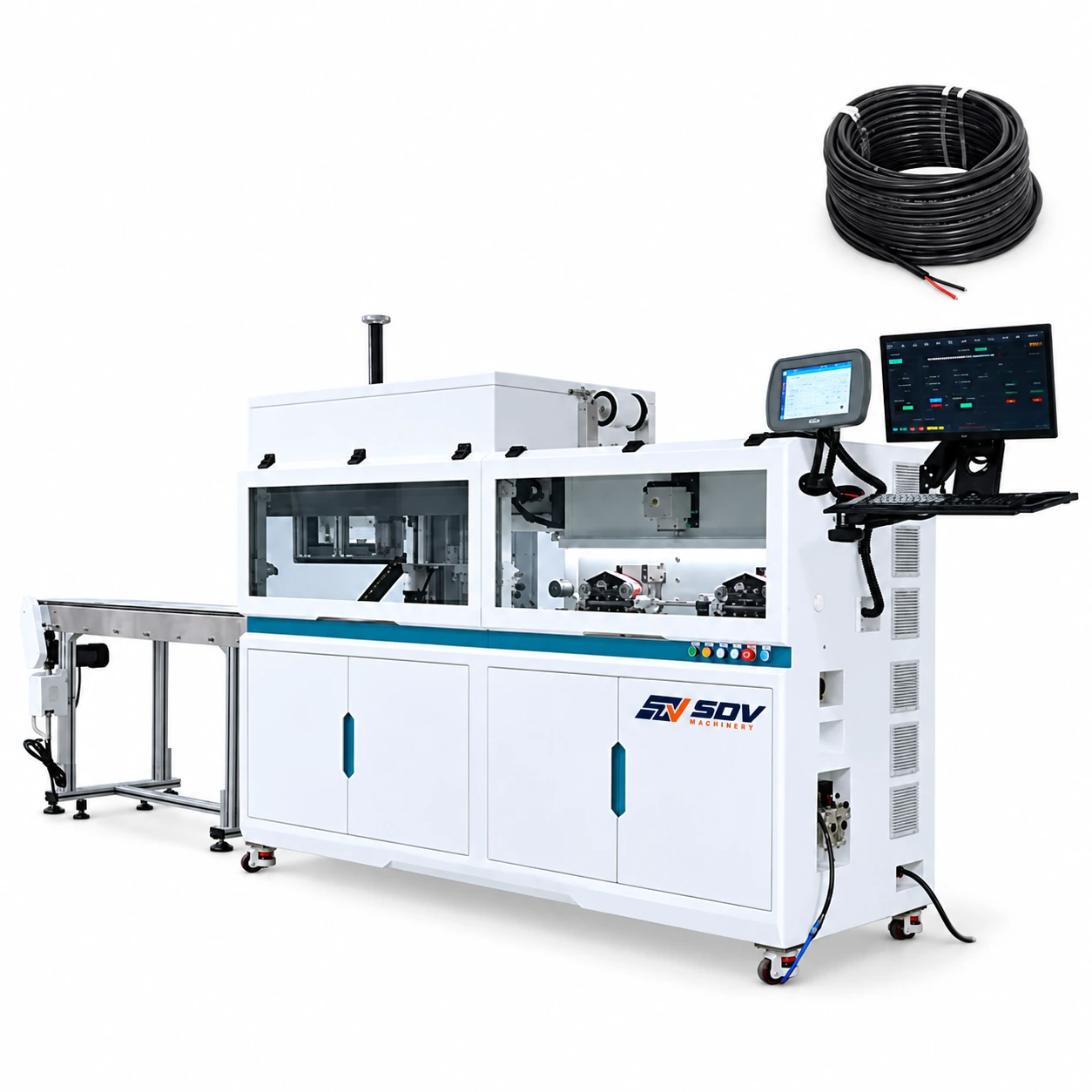

Feature
● All-in-One Cut, Strip, Coil, and Bundle Automation: Combines precision cable feeding, cutting, dual-end multi-step stripping, neat coiling, and automatic elastic strap bundling into one seamless workstation.
● 24-Wheel Belt-Driven Non-Marking Feed: Dual belt drive mechanism distributes clamping pressure evenly over a large surface area, conveying heavy 120 mm² cables without denting or scratching soft insulation.
● High-Speed Servo Tool Holder & Heavy-Duty Blades: Driven by a precision servo tool holder equipped with imported high-speed tungsten steel blades for long-lasting cutting accuracy within ±0.2% of cut length.
● Digitally Controlled Pressure Rollers: Features motorized digital height and pressure adjustments via the touchscreen interface, ensuring fast, repeatable setups across different cable diameters.
● Automated Sensing Coiling & Tying Module: Automatically coils heavy cables up to 40 kg with adjustable inner and outer bundle diameters, followed by automatic sensor-triggered nylon braided elastic strapping.
Application Range
● Heavy Industrial Power Cables: High-efficiency cut, strip, coil, and tie processing for thick single-core and multi-conductor power leads.
● Automotive & EV Charging Harnesses: Automated coiling and binding for high-voltage electric vehicle charging cables and battery distribution lines.
● Renewable Energy & Photovoltaic Wiring: Processing large cross-section solar inverter cables and energy storage unit interconnections.
● Building Wire & Electrical Distribution: High-volume commercial coiling and strapping for retail or distribution wire rolls up to 40 kg.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
