Feature

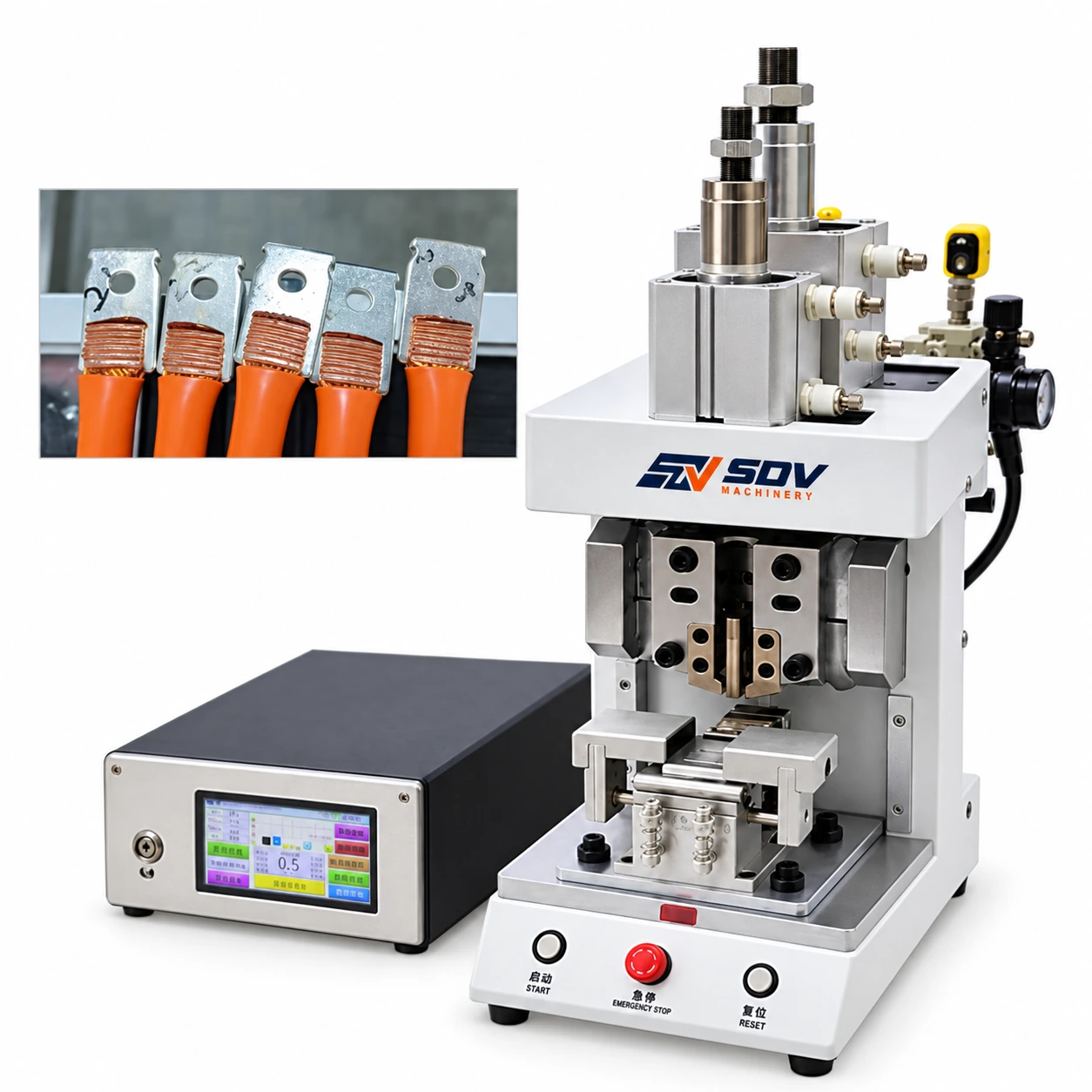

● 4000W High-Power Ultrasonic Welding
The EW-6230 provides a maximum output power of 4000W, delivering the power required for ultrasonic welding of copper and aluminum wire harnesses across its specified welding range.
● Copper & Aluminum Wire Welding
The machine supports 1–25mm² copper wire and 1–35mm² aluminum wire. This dual-material capability makes the EW-6230 suitable for different cable and wire harness connection applications.
● Fast 0.5–2 Second Welding Cycle
The welding time can be adjusted from 0.5 to 2 seconds, allowing operators to configure the welding process according to the wire material and required welding area.
● MCU Control with Bilingual Interface
The EW-6230 uses an MCU control system and supports Chinese and English language selection. The control interface allows operators to configure and monitor the welding process more conveniently.
● Pedal-Activated Semi-Automatic Operation
The pedal start function enables convenient operator-controlled welding cycles. Combined with the compact integrated design, it provides a practical solution for semi-automatic wire harness production.
Application Range
The EW-6230 is suitable for industrial applications requiring ultrasonic joining of copper or aluminum wires and cable harnesses.
● Automotive Wire Harness Manufacturing: Suitable for wire harness production where copper or aluminum wire connections require consistent ultrasonic welding.
● New Energy & Electric Vehicle Wiring: Applicable to cable and harness assemblies using larger cross-section copper or aluminum conductors.
● Electrical Equipment Manufacturing: Suitable for electrical wiring and conductor joining applications requiring reliable wire connections.
● Cable Harness Assembly: Designed for manufacturers processing copper and aluminum wire harnesses in semi-automatic production environments.
● Industrial Electrical Systems: Applicable to wire connection processes used in industrial equipment and electrical assemblies.
● Household Appliances: Suitable for internal wiring and electrical connection applications in appliance manufacturing.
