Feature
● Simultaneous 4-Wire Processing

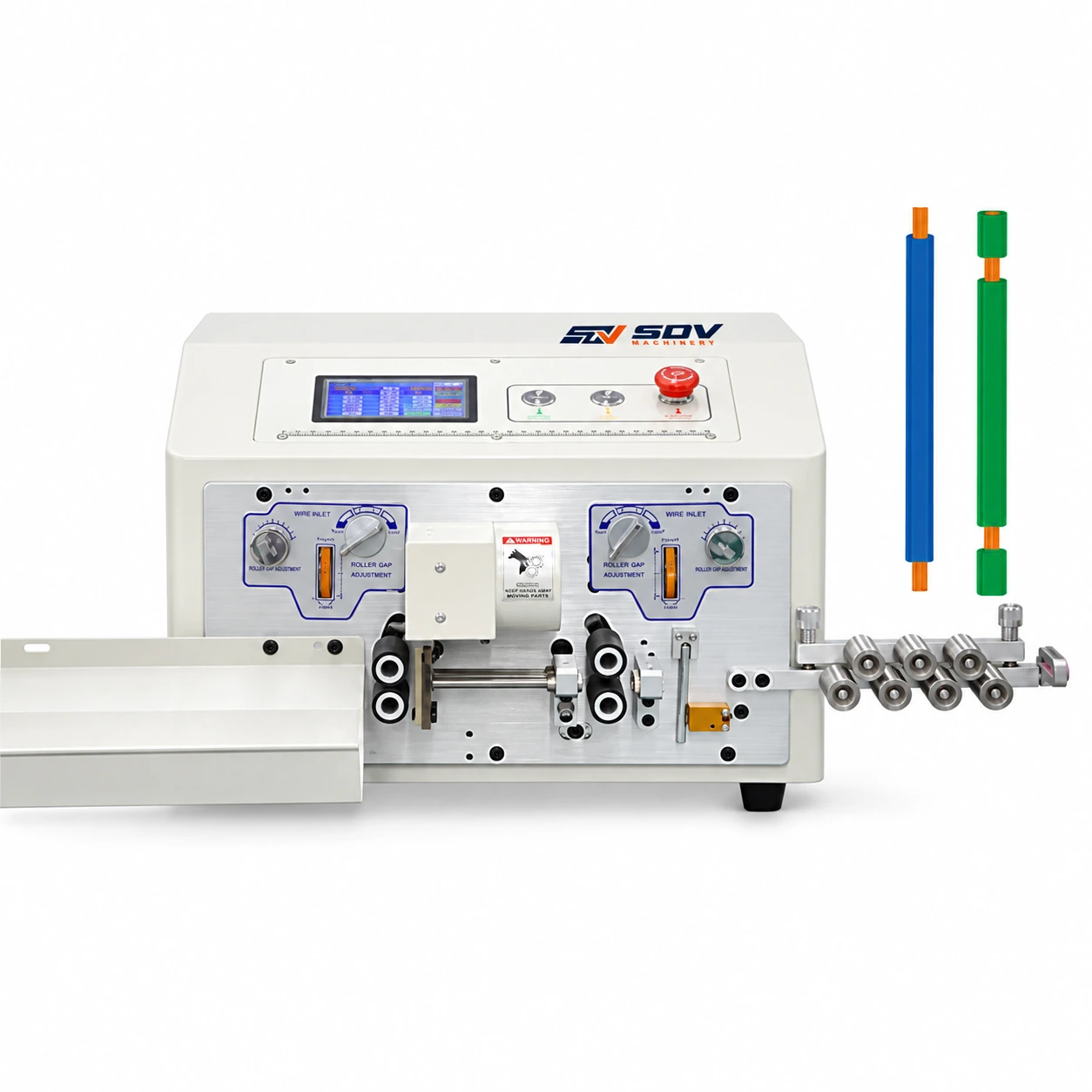

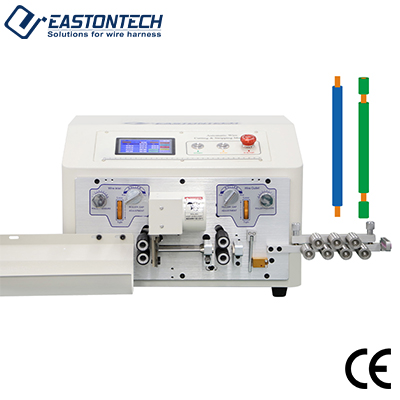

The EW-3320 can process up to four wires at the same time, significantly improving production efficiency for multi-conductor cables and industrial control wiring.
● 4-Wheel Synchronized Feeding
The precision 4-wheel drive system with a silent hybrid stepping motor maintains stable wire traction and supports 0.1mm feeding increments for consistent processing accuracy.
● Flexible Mid-Stripping Capability
The machine supports 16 programmable mid-stripping positions, allowing manufacturers to prepare multi-core cables for connectors, branches, and intermediate stripping applications.
● Wide Wire Compatibility
The EW-3320 processes PVC, Teflon, and fiberglass insulated wires, supporting 0.1–10mm² single wires and 0.1–2.5mm² four-wire processing, with a maximum conduit diameter of Ø6mm.
● Touch Screen Operation with Durable Blades
The 4.3-inch LCD touchscreen simplifies parameter adjustment, while imported high-speed steel blades provide reliable cutting and stripping performance during continuous production.
Application Range
The EW-3320 is designed for manufacturers processing multi-conductor wires and industrial control cables that require synchronized cutting, stripping, and mid-stripping operations.
• Industrial Control Cable Manufacturing: Processes multi-conductor control cables requiring accurate stripping and synchronized multi-wire feeding.
• Wire Harness Production: Ideal for automotive, industrial, and electrical wire harnesses where multiple conductors need to be processed simultaneously.
• Electrical Equipment Assembly: Suitable for preparing multi-core cables used in control panels, automation equipment, and electrical systems.
• Industrial Automation Wiring: Efficiently processes PVC, Teflon, and fiberglass insulated wires used in machinery, sensors, and industrial control systems.
• Communication & Multi-Core Cable Processing: Supports cable preparation requiring 16-position mid stripping for connector assembly and branching applications.
