Feature
● Complete Ribbon Cable Processing in One Cycle
The EW-9555 performs cutting, stripping, terminal crimping, conductor twisting, and solder tinning within one automated workflow, reducing production time and eliminating unnecessary manual handling.
● CNC Touchscreen Control
All processing parameters—including stripping length, twisting intensity, flux depth, solder depth, and cutting settings—are digitally controlled for fast product changeovers and repeatable production.
● Infrared Crimp Anomaly Detection
The integrated infrared inspection system continuously monitors crimp quality, helping detect abnormal crimping conditions before defective products continue through production.
● Servo-Driven Precision Mechanisms
Servo motors, precision ball screws, and synchronized wire handling ensure stable positioning and smooth wire movement throughout continuous production.
● Contactless Safety Light Curtain
A built-in safety light curtain creates a virtual protective zone around hazardous areas, protecting operators without restricting visibility or workflow.
Application Range
The EW-9555 is designed for manufacturers requiring fully automated ribbon cable processing with integrated terminal crimping and solder tinning for multi-core cable assemblies.
● Ribbon Cable Manufacturing: Ideal for 2P–20P ribbon cables, completing cutting, stripping, crimping, and tinning in one automated production cycle.
● Automotive Electronics: Suitable for dashboard wiring, control modules, sensor cables, and flat cable assemblies requiring consistent terminal quality.
● Industrial Control Systems: Processes multi-core cables used in PLC wiring, automation equipment, and electrical control cabinets.
● Consumer Electronics: Supports flat cable production for home appliances, display assemblies, communication equipment, and electronic devices.
● OEM Cable Assembly: Designed for high-volume manufacturers requiring programmable CNC control, servo-driven accuracy, and integrated quality inspection for repeatable production.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment

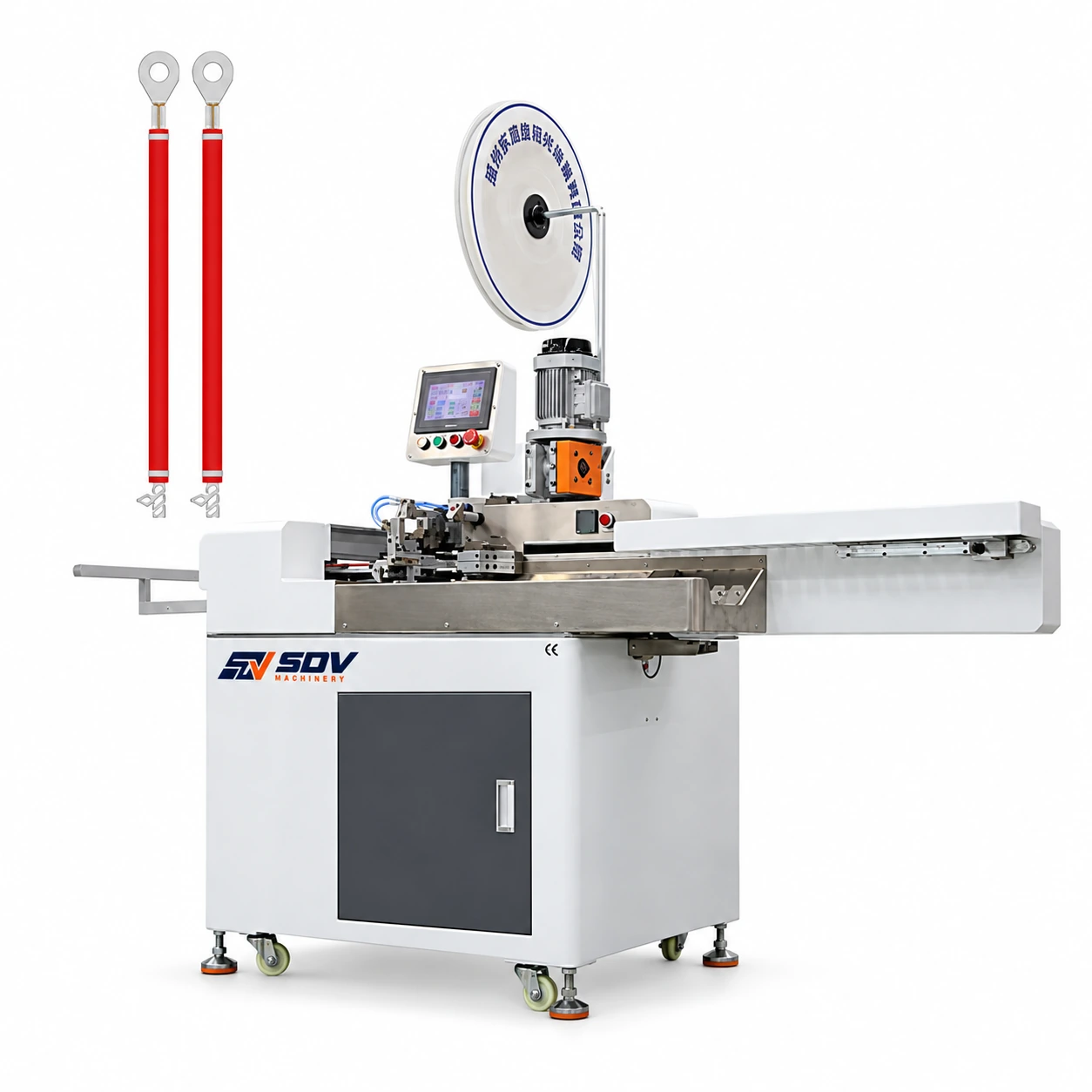

Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
