Feature
● Thermal Fusion Shield Stripping
The machine removes stainless steel braided shielding through thermal fusion, helping protect the insulation layer of the inner conductors.
● Designed for Thermocouple Cables
Engineered specifically for thermocouple wires and metal braided shielded cables, providing reliable processing for specialized cable structures.
● High Stripping Precision
A silent hybrid stepper motor delivers positioning accuracy of 0.01 mm, ensuring consistent stripping quality across production batches.
● Wide Processing Range
Processes shielded cables from 0.3–6 mm² (AWG 30–8) with fully programmable cutting and melting lengths.
● Intelligent Production Functions
Supports automatic wire feeding, automatic wire discharging, scheduled startup, and manual melting mode for flexible production.
Application Range

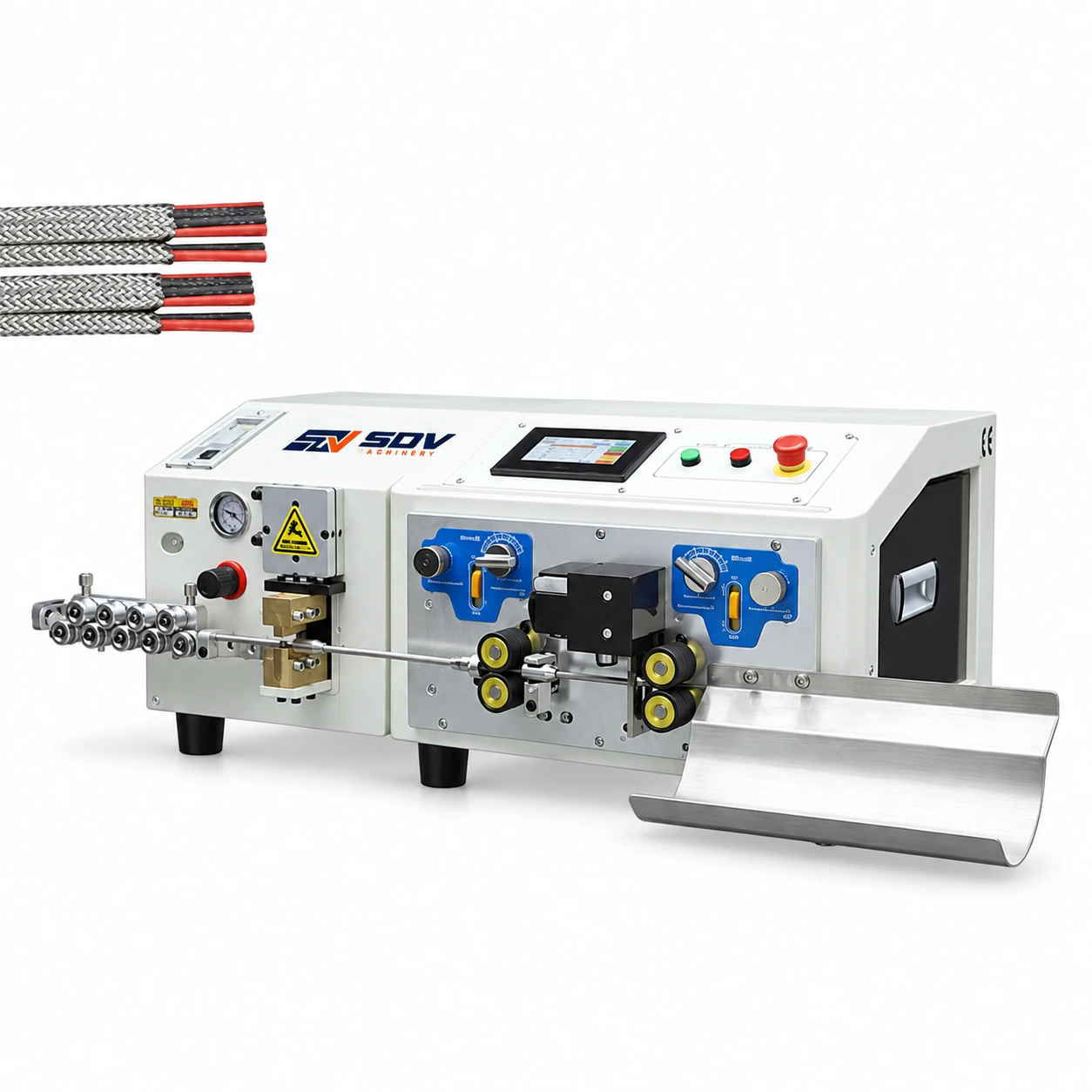

The EW-3275 is designed for manufacturers requiring precise removal of metal braided shielding without damaging internal insulation.
● Thermocouple Manufacturing: Processes stainless steel braided thermocouple cables for temperature measurement applications.
● Industrial Sensor Cable Production: Removes braided shielding from sensor cables used in automation, instrumentation, and process control systems.
● Shielded Cable Processing: Handles braided shield removal for industrial cables requiring clean exposure of inner conductors.
● Laboratory & Testing Equipment: Prepares thermocouple and shielded cables for testing instruments and measurement equipment.
● Custom Cable Assembly: Supports specialized cable processing for OEM manufacturers working with braided shielded cable structures.
