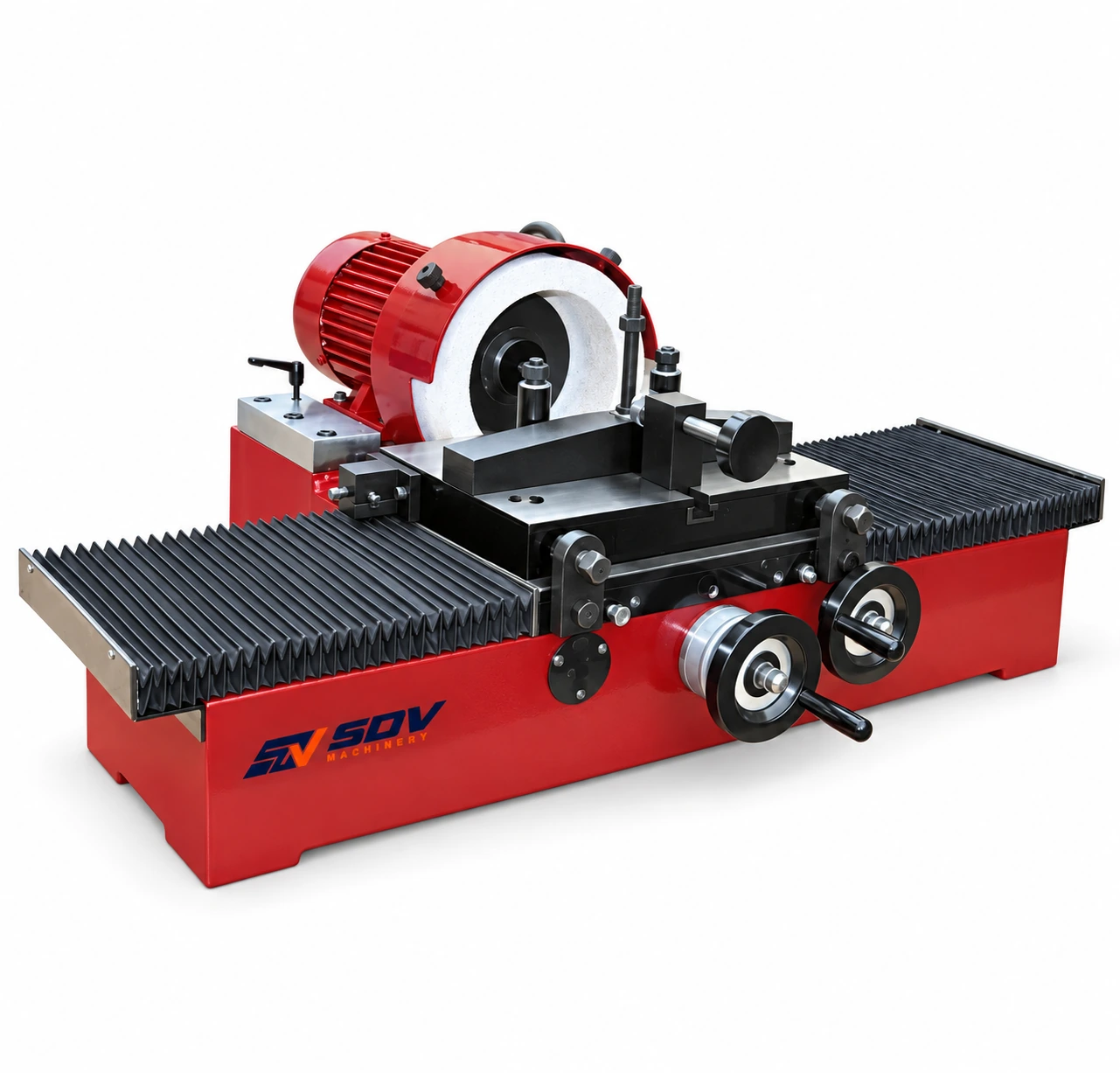

DM100 Cap and Rod Grinding Machine
Price of the selected optionon request
Description
Longitudinal movement of grinding head with guide screw. Precise and convenient control of grinding removal by turning the handwheel with scales. The shim plate can be slightly adjusted to accurately regulate the degree of parallelism between the grinding face of workpiece and the end-face of grinding wheel so that the processing requirements can be fully satisfied with a high precision of grind. The lateral shifting of the trailing bar adopts the gear-rack structure to adapt to different grinding speeds, with an easy operation.
Specifications
- DM100 Cap and Rod Grinding Machine Feature
- Longitudinal movement of grinding head with guide screw. Precise and convenient control of grinding removal by turning the handwheel with scales. The shim plate can be...
- Feature
- Longitudinal movement of grinding head with guide screw. Precise and convenient control of grinding removal by turning the handwheel with scales. The shim plate can be slightly adjusted to accurately regulate...
- Model
- DM100
- Max. outside dimension of cap
- Φ 275 mm
- Maximum thickness of the connecting rod
- 100 mm
