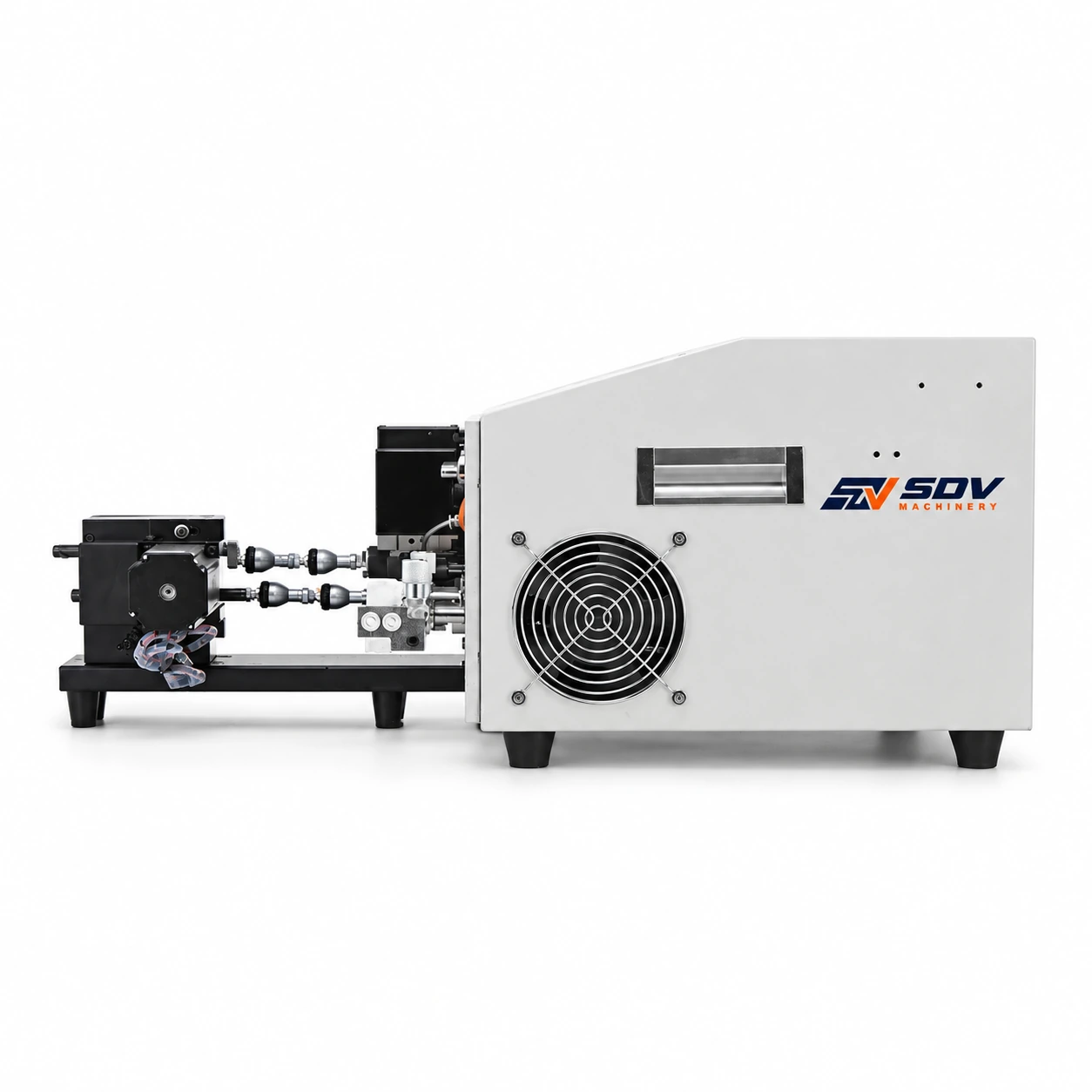

X-CS102NX 6mm2 Automatic wire cutting and stripping Twisting machine,Double wire cutter stripper and twister Product Description Specification IntroductionThis machine is mainly suitable for 0.1-6mm2 smaller wire processing. it suites for industries electronic products, electric appliances, new energy industry, car industry, toys, and other wire harness applicances etc.FeaturesHigh precision and productivity solutions for wire cable cutting and stripping. Easy to operate program and low maintenance.Safety protection.Plastic Protection shell is available，automatic wire feeding machine is available.Technical Details Model NumberX-CS102NXNameAutomatic wire cutting and stripping machineCutting Length1-9999mmStripping LengthFront: 15mm; Rear: 35mmVoltage220V/110VPower Rate200WCutting Tolerance(0.2+/- 0.002 by L) mmCutting Stripping wire core sectionOne wire: 0.1-6mm2 Two wires： 0.1-2.5mm2...
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
