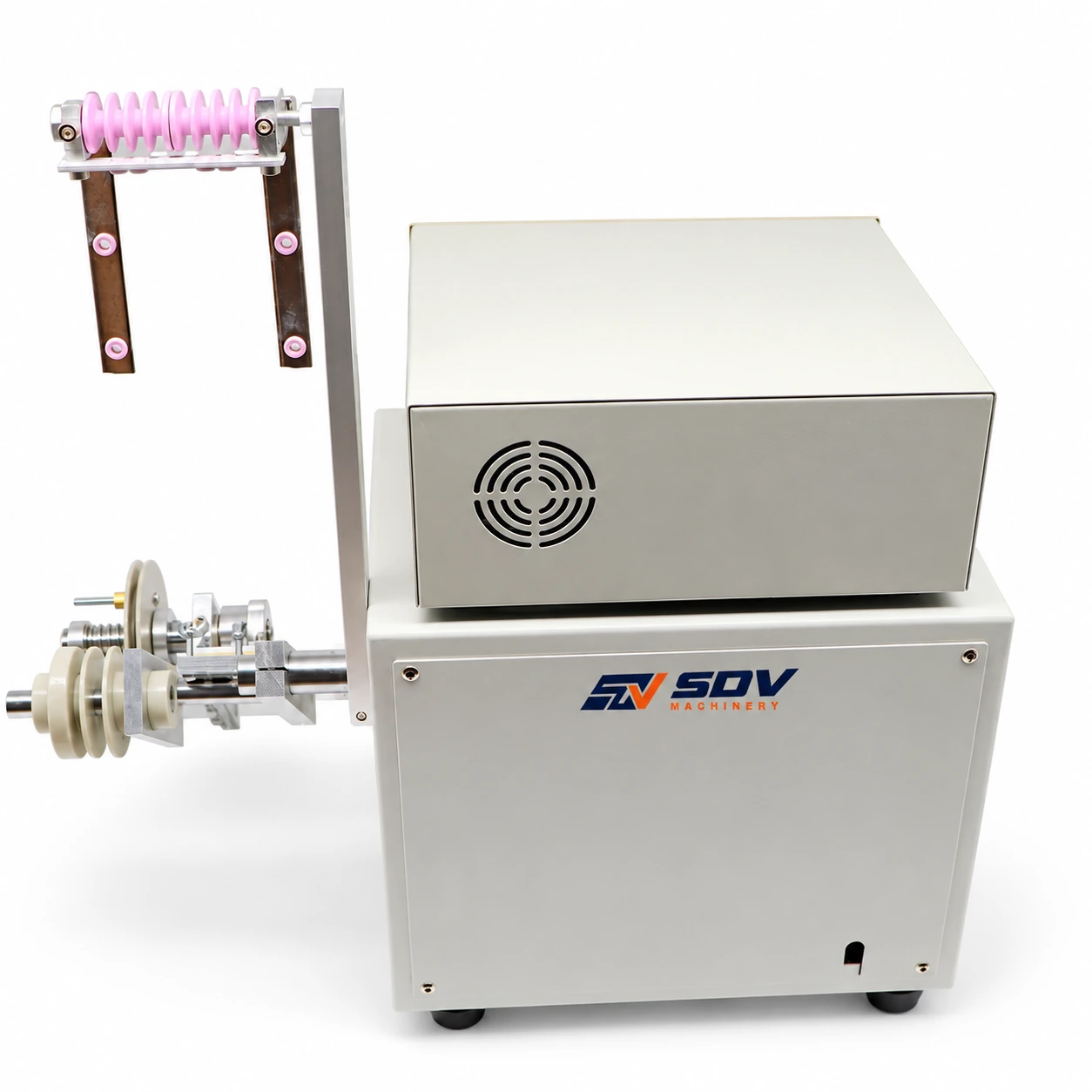

Best 810 Coil Winding Machine with 0.03 to 1.2mm Tensioner CNC Automatic Wire Winder Dispenser Dispensing Machine 400W 110/ 220VNew Computer C Automatic Coil Winder Winding Machine for 0.03-1.2mm wireif your place is remote,then need to pay 35usd.Specification for 810 winding machinepower voltage:single phase AC 220V 50HZCop motor:three phase machine 400W(1/2hp)winding displacement machine:step-servo motorBrand:810Spindle motor: Brushless DCNumbers of cop:1Windable wire gage:0.03-1.2mmMaximum winding width:110mmMaximum screw diameter:120mmMaximum turning speed of cop:6000circles/minute,speed adjust functionStorable winding groups:999 groupsCounting resolution:0.1 circleComplete appliance weight:30kgSize:510*490*450mmDescription for TensionerThe tensioner is the key component of the winding machine to produce adjustable tension when winding, so that the enameled wire is wound with...
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
