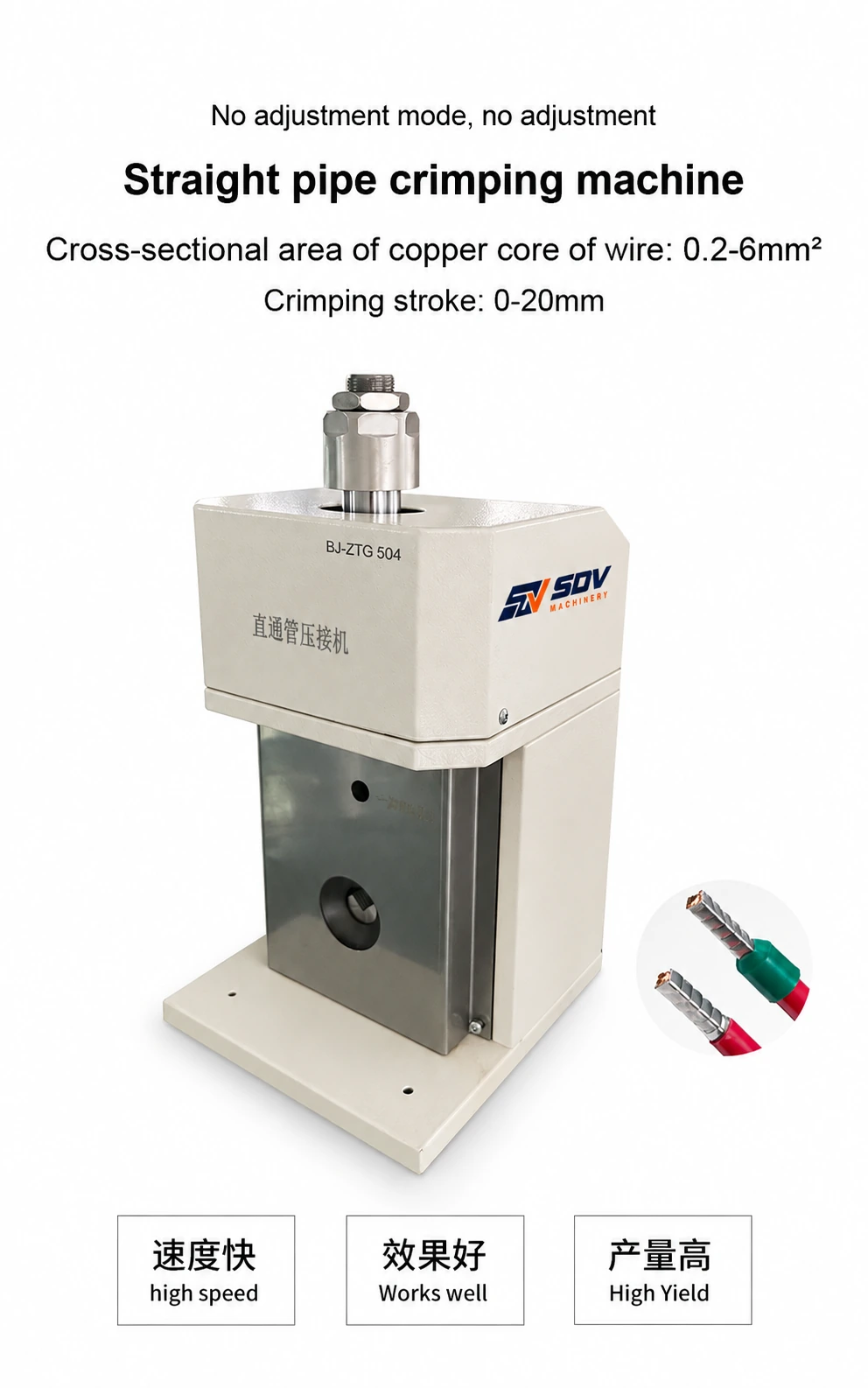

Semi-automatic straight-through tube crimping machineRound tube terminal machineTubular terminal crimping machineAutomotive wiring harness processing equipmentfeature1. No wood adjustment, no pressure adjustment. Power comes from compressed air.2. Applicable to wire copper core cross-sectional area: 0.2-6mm². Crimping stroke: 0-20mm.3. Fast speed, good effect, high output, high precision, high stability and high durability. Applicationelectronic CertificationCE Crimping force:350-500KG Crimping stroke:0-20MM is_customizedYES Model NumberBORX-ZTG504 OriginMainland China Power supply:220V 50HZ Usage 2:Wire tubular connector crimping tool Usage 3:Mini cable crimper machine Usage:Wire straight pipe crimping machine Write a review Your Name Your Review Note: HTML is not translated! Rating Bad Good Enter the code in the box below Submit jQuery(document).ready(function($) {...
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
