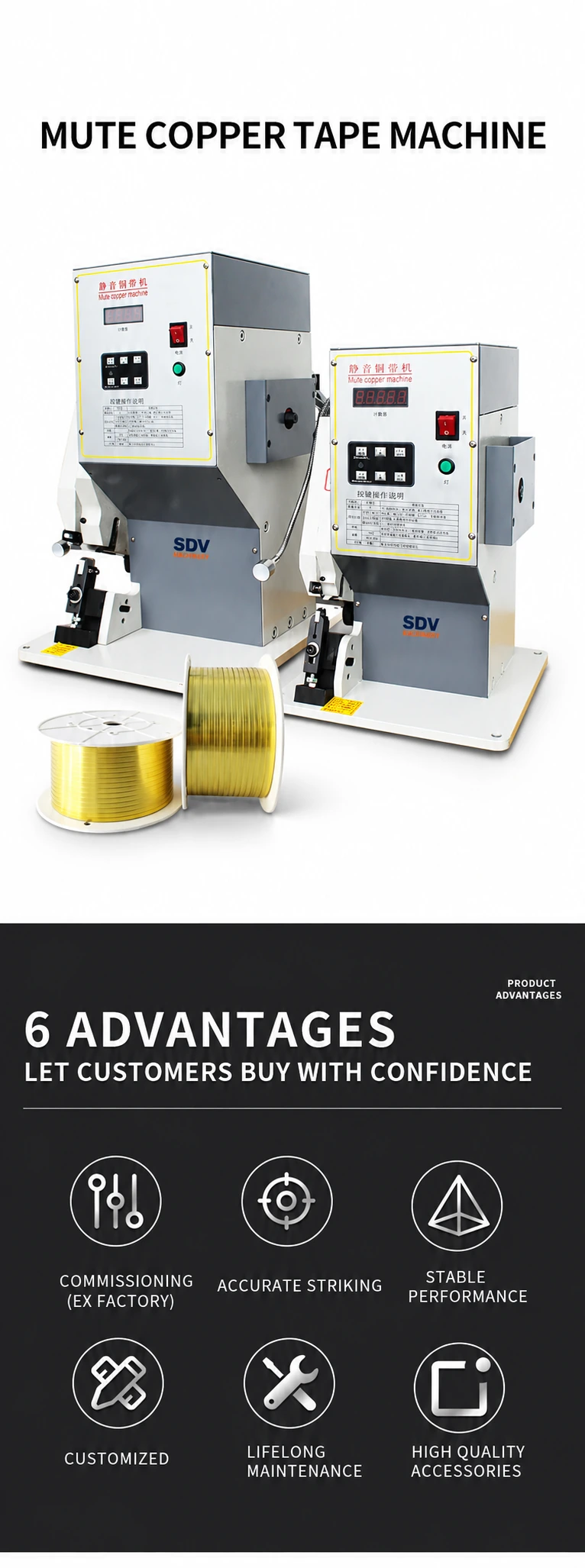

Product Description 4T Mute Terminal Crimping Machine Our Advantages Scope of application1 The connection between the light wire and the resistor, the connection between the led and the wire2 Connection between slide switch and wire (replaces traditional hook welding)3 Connection between high temperature heating elements4 Transformer taps and wire connections Specification itemvaluePlace of OriginChinaGuangdongBrand NameXingchuangxinModel NumberXCX-4TUsageCrimping/RivetingNameCopper belt crimping machineBrand nameXCXPower supplyAC220V /50/HZStroke30mmHorsepower1.5kwCopper strip size2MM/4MM/6MM/8MM/10MMWeight105kgWarranty1 YearDimension50*38*58cmUsageCrimping Brand NameXingchuangxin;XCX Copper strip size2MM/4MM/6MM/8MM/10MM Dimension50*38*58CM Horsepower1.5KW NameCopper belt crimping machine Place of OriginGuangdong;China Power supplyAC220V 50/HZ Stroke2000Kg...
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
