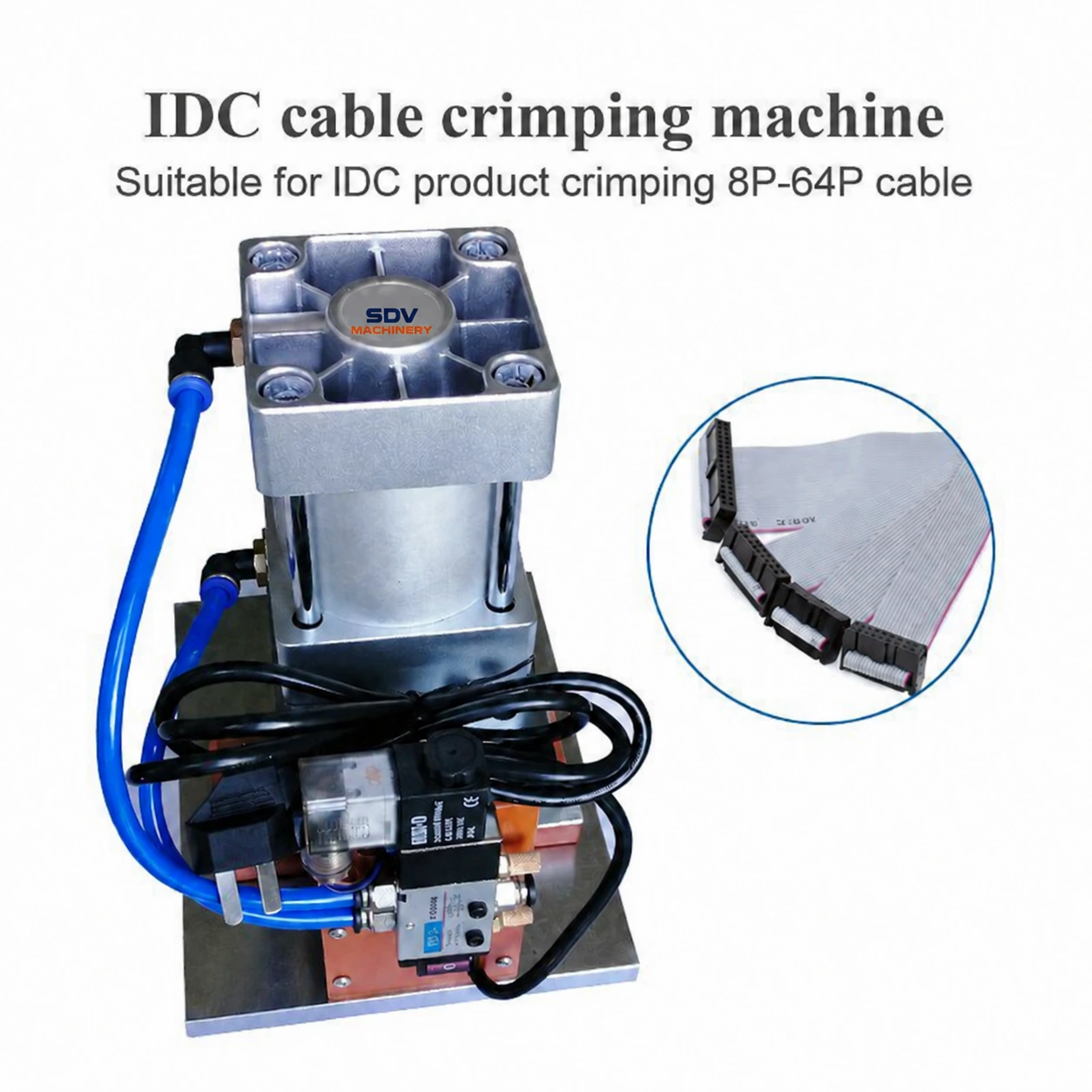

FEATURE· Can be crimped 300-600 times per hour according to the product type· Low air consumption, low failure rate, easy maintenance· Automatic crimping after the product is pushed in Product Description Specification itemvaluePlace of OriginChinaGuangdongBrand NameXingchuangxinModel NumberXCX-0864YUsageIDC crimpingNamePneumatic IDC cable crimping machineCrimping4-40P a fixture; 40-64P a fixtureWarranty1 YearSuitableIDC cabble, ribbon cablePower supplyAC220V/110V 50/60HZWeight14KgDimension250*200*330mmAfter-sales serviceOn line supportFunctioncrimpingDisplay methodChinese or English Brand NameXingchuangxin Crimping4-40P a fixture; 40-64P a fixture Dimension250*200*330mm Display methodChinese or English FunctionCrimping NamePneumatic IDC cable crimping machine Pin number of crimping4-30P/30-50p/64p Place of OriginGuangdong;China Power supplyAC220V/110V 50/60HZ Single package...
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
