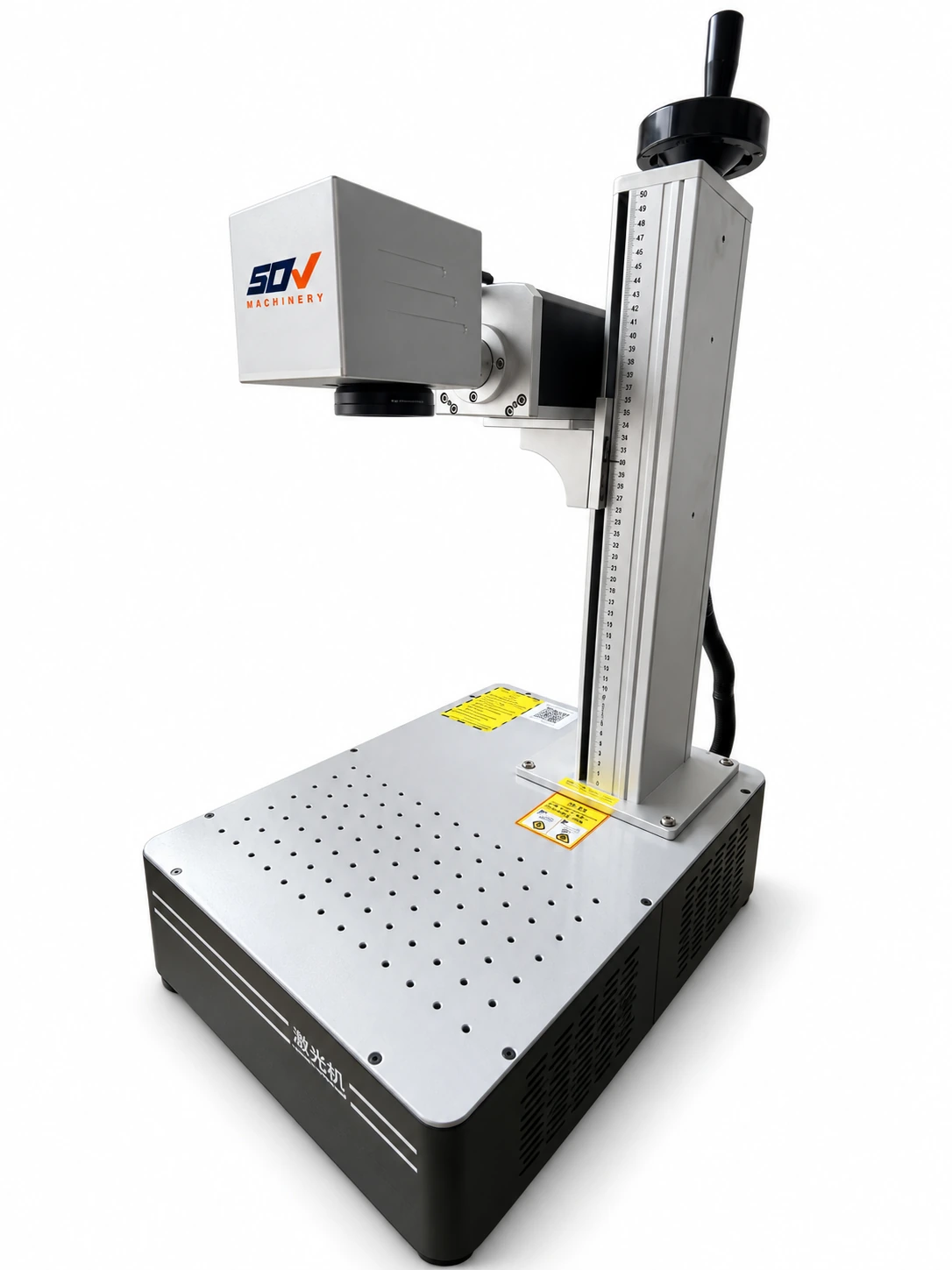

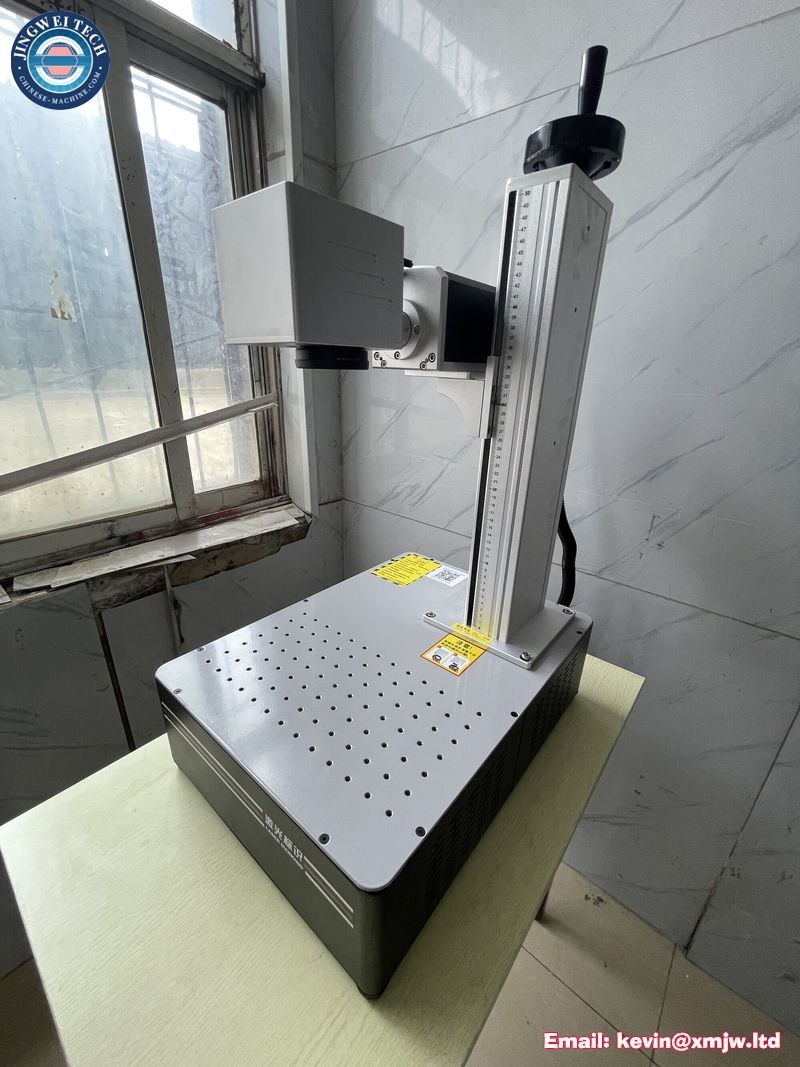

20W 30W 50W 60W 80W Fiber Laser Marking Machine 100W JPT M7 MOPA Colorful Metal Cutting Ring Engraving With EZCAD SoftwareSpecifications:ModelLaser power20W/30W/50W/60W/80W/100WWorking Area70x70mm/110x110mm/150x150mm/175x175mm/200x200mm/220x220mm/300x300mm (Optional)Cooling ModeAir CoolingLaser Wavelength10.64 umFrequency of pulse20-100 KHzMarking Depth≤0.3 mmMarking Speed≤18000 mm/sMarking Lines1-10 linesMinimum Line Width0.01 mmMinimum Character0.15 mmRepeatability Accuracy±0.002 mmResolution Ratio0.1 mmMarking ContentText, pattern, date, bar code, etcOperation SystemMicrosoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10Control SoftwareEZCAD2Graphic Format SupportedBMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.Unit Power500WOperation Temperature5°C-40°CRelative Moisture≤ 90%, no fogDimensions(L*W*H)45 x 55 x 75 cmPower supply requirements220 V or...
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
