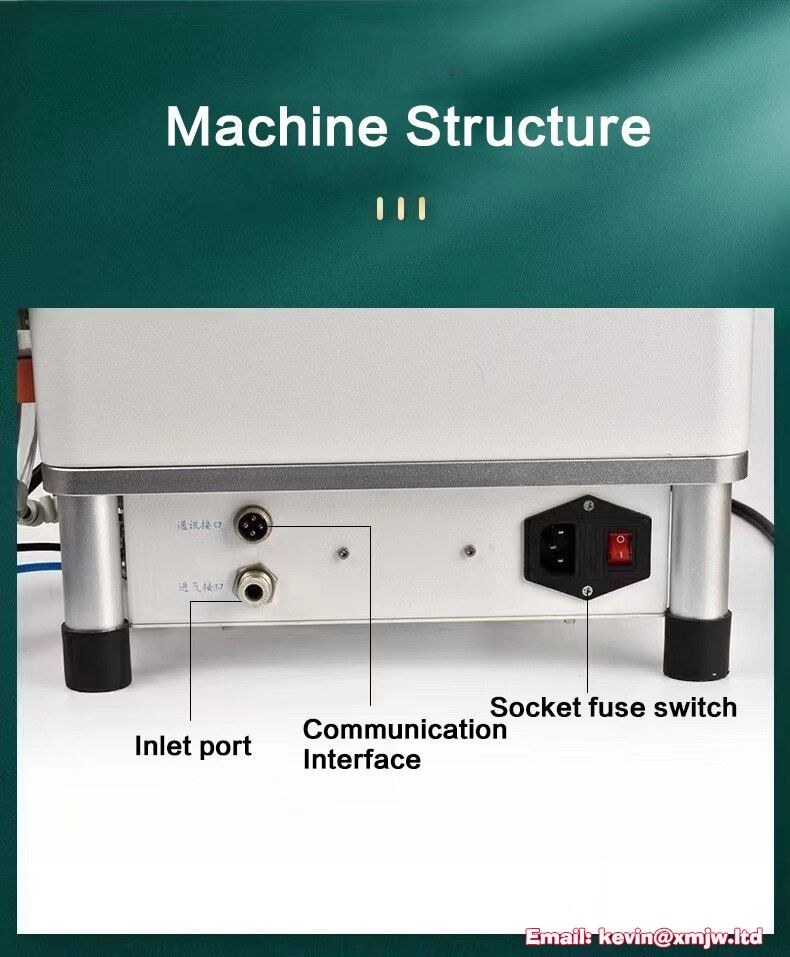

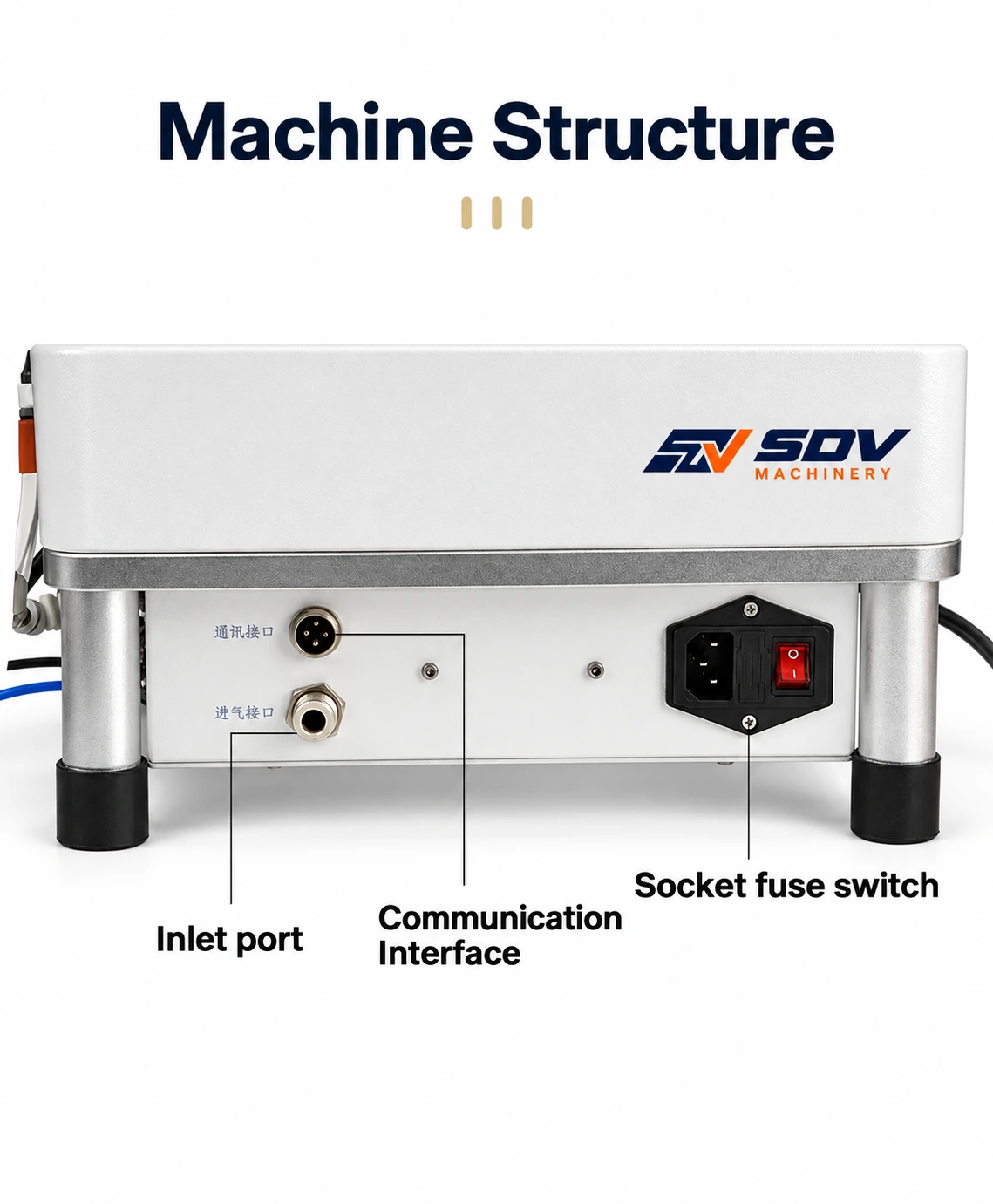

Technical parametersMachinMachine nameHandheld air bolw screwdriverScrew lengthwithin 20mmScrew sizeM2.0~M5.0Output speed60~75PCS/MINScrew cap size3.0~8.0Machine weight15kgＭachine descriptionM=screw diameter, D=nut diameter, L=screw total length, the most suitable screw diameter: M=M4Applicable nut diameter: D=Φ7:8/1.2=6.5, minimum screw diameter: M=M4*0.9=M3.6Maximum screw diameter: M=M4*1.1=M4.4, minimum nut diameter: D=6.5*0.9≈5.8Screws with screw caps with a diameter difference of 4mm can share a set of collet, and special screw collet need to be customizedProfessional answers to machine selection problemsWhen purchasing a screw machine, you need to provide screw specifications, so that we can match the machine for you1. What is the screw material? For example: stainless steel (non-magnetic), iron (magnetic)2. The length of the screw and the diameter of the screw head3. Need to...
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
