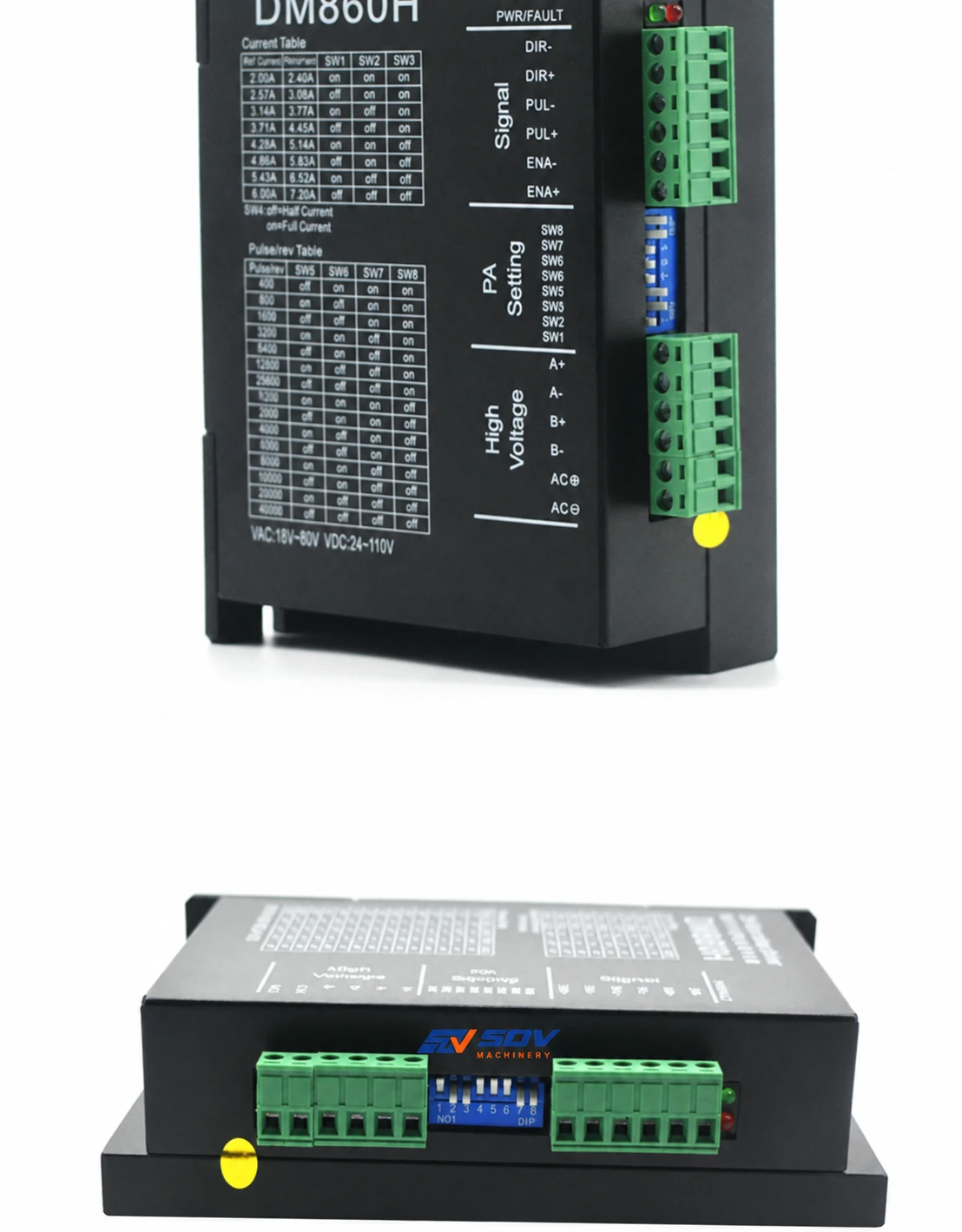

Stepper Motor Driver Controller DM860/DM860H - Digital Microstep for NEMA23/34
Price of the selected optionon request
Description
Stepper Motor Driver Controller DM860 DM860H With Fan Digital Microstep Brushless DC Step Motor for 57 86 Stepper Nema23 Nema34Specification:Can drive 4-wire, 8-wire two-phase stepper motorVoltage input range: 18~80V AC / 24-110V DCMaximum current: 7.2A, resolution: 0.1ASubdivision range: 400~25600pprSignal input: differential / single-ended, pulse / direction or double pulseImpulse response frequency: 200KHzBuilt-in micro-segmentPower-on parameter auto-tuning functionPrecision current control greatly reduces motor heatingThe current is automatically halved at restOptically isolated signal input, strong anti-interference abilityWith overvoltage, overcurrent and other protection fun CertificationCE Maximum current7.2A;resolution: 0.1A ModelDM860 DM860H Stepper Motor Driver Model NumberDM860 DM860H Stepper Motor Driver Motor typeStepper Motor OriginMainland China Power supplyDC...
Specifications
- Certification
- CE
- Maximum current
- 7.2A;resolution: 0.1A
- Model
- DM860 DM860H Stepper Motor Driver
- Model Number
- DM860 DM860H Stepper Motor Driver
- Motor type
- Stepper Motor
