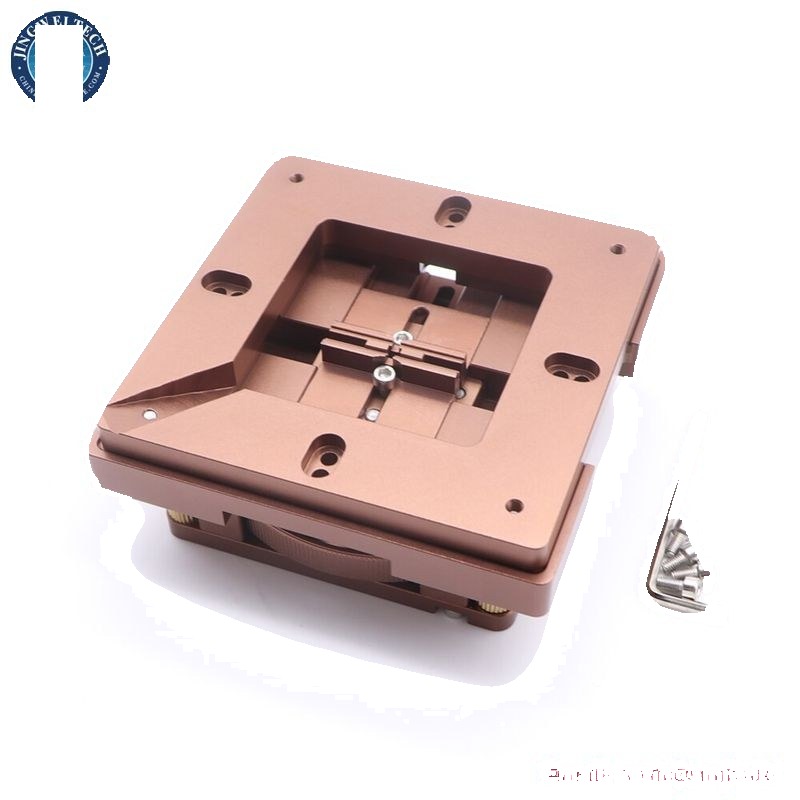

80mm 90mm Universal BGA Reballing Station Aluminium alloy Stencil Planting jigs Fixtures with Magnet Auto Adjust Stencil HolderThe new self-locking BGA reballing stationIt is made of Aluminum alloy structure, lightweight and durable structureWe used the old models have such an experience: It is too much trouble to adjust the position of the chips,need to repeatedly adjust the folder block in order to align the center position, time-consuming and laborious.This New reballing station is with automatic centering function, rotating spiral disk, four folders block locking chips without a single adjustment,positioning accuracy standards, clamping speed, high efficiency!Dimensions: 80mm *80mm and 90mm * 90mm.Advantages:1. For both 80mm and 90mm stencils2. No need use wrench to adjust the height, just use finger up and down3. Suitable for rectangle chips (picture below), and very small chip,...
